Injection Molding vs Blow Molding vs Thermoforming: Buyer Guide

Injection molding, blow molding and thermoforming all shape plastic, and
buyers often arrive with a process already chosen and a quote already in hand. That is
backwards. The same geometry is sometimes cheapest by blow molding, sometimes impossible by
blow molding, and the crossover points are worth understanding before you commit a program.

Short answer

Injection molding for solid, dimensionally critical, high-volume parts with
fine detail and repeatability. Blow molding for hollow, thin-walled, high-volume
parts with smooth surfaces such as bottles and containers. Thermoforming for
shallow, large, thin-walled parts in short to medium runs.

If you need one decision rule: hollow and thin-walled points to blow molding, shallow sheet
points to thermoforming, and everything else points to injection molding.

Process comparison

When blow molding is the right choice

Blow molding forms a hollow part by inflating a preform, or parison, inside a cooled mold.
The economics come from two places: the mold is comparatively simple, and the part is hollow,
so you use far less material than a solid equivalent.

Typical applications: detergent and shampoo bottles, food containers, automotive ducts and
reservoirs, jerry cans, and large technical blow-molded floats. Common resins: HDPE, PP,
PET and PETG, and PC for clarity and impact resistance.

Choose blow molding when the part is hollow, wall thickness is under about 3 mm, the volume
runs into the thousands, and the geometry is smooth without threads or tight features.

Choose not when the part needs structural strength in the wall, when it
must hold a threaded connection, or when tolerances are tight, because hollow walls move
during cooling and are harder to hold to spec.

When thermoforming is the right choice

Thermoforming heats a sheet of plastic and stretches it over a mould, usually with a vacuum.
Because the tooling is a single male or female form rather than a two-sided cavity, it is
cheap and fast to make.

It suits shallow trays, housings and covers, blister packs, refrigerator liners, and
lighting diffusers. Materials include ABS, HIPS, PS, PVC, PET and polycarbonate sheets.

The limitation is material efficiency: the sheet is cut and trimmed, and the offcut is
waste. So thermoforming is economical in short and medium runs, but every cycle consumes a
whole new sheet. Above roughly 10,000-50,000 parts, injection molding usually overtakes it
because material efficiency becomes the dominant cost.

For deep parts, thermoforming becomes pressure forming, where a matched
tool pushes the sheet rather than a vacuum pulling it, which gives better thickness
distribution and lower scrap.

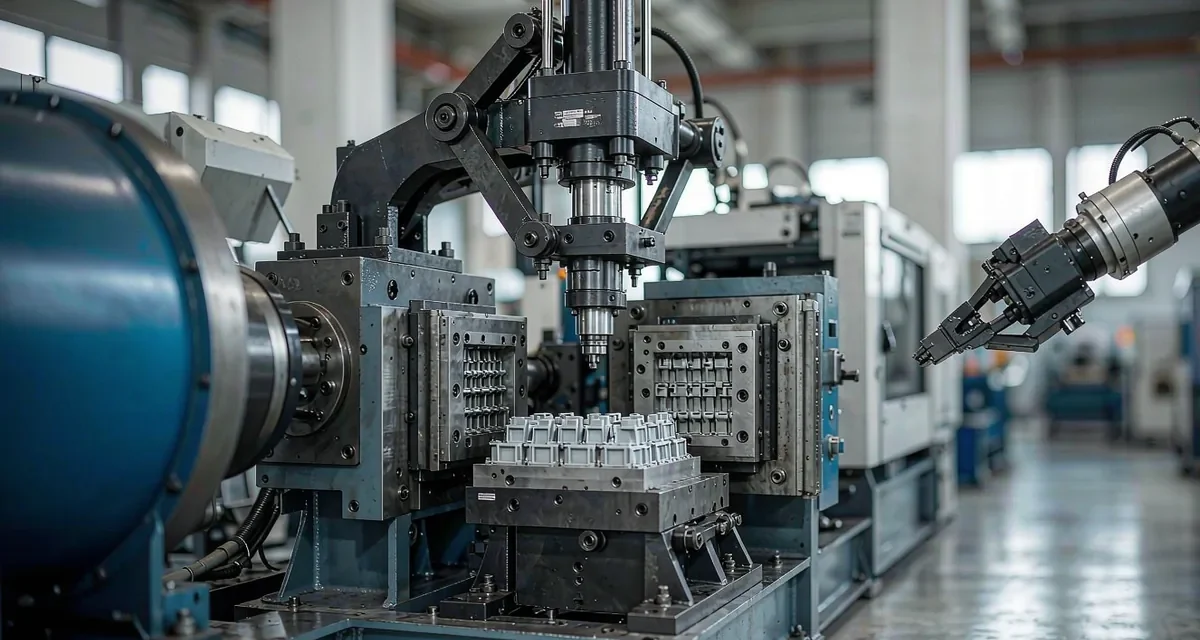

When injection molding is the right choice

Injection molding wins wherever the part is solid or needs geometric precision, whenever
the design carries functional features, and at volume.

Examples: automotive interior and under-hood components, medical device housings, consumer
electronics enclosures, appliance parts, packaging, and anything with snap fits, threads,
ribs, bosses or assembly features.

The reason is structural: injection molding fills a rigid cavity with melt under pressure,
which produces a solid, dimensionally repeatable part with excellent surface finish. Our
injection molding service runs 100+ machines from 50T
to 1800T with 24/7 automated cells, covering everything from small medical parts to large
automotive components.

Three real part decisions

A 2-litre detergent bottle, 200,000 per year

HDPE, hollow, wall thickness around 0.4 mm, smooth surface, screw closure. Blow molding
wins decisively: the tool is around USD 8,000-15,000, cycle time is
under 10 seconds, and material use is a fraction of a solid equivalent. Injection molding
is technically possible but wasteful on material and expensive for no benefit on the
resulting part.

A medical fluid reservoir, 25,000 per year

Clear PC, 400 mm long, wall thickness 2 mm, tight tolerances, four ports and a moulded
lip. Injection molding wins: blow molding cannot hold the port geometry or the dimensional
control, and the wall thickness is well beyond blow molding’s practical range. A 2-cavity
tool with a hot runner is around USD 30,000, which at 25,000 parts adds
roughly USD 1.20 per part of tooling.

A refrigerator shelf liner, 8,000 per year

ABS sheet, 500 mm, 1.2 mm wall, textured, shallow. Thermoforming wins: a single
matched tool costs USD 3,000-6,000, the cycle is fast, and at 8,000
units the sheet cost is manageable. Injection molding would need a USD 40,000+ tool that
would not pay back inside a decade.

Process terms quick reference

The special case of clear parts

Optical clarity is a case where the choice narrows and the trade-offs become technical.
Clear polycarbonate and ABS/PC blends processed by injection molding give the best optical
quality, best dimensional control and lowest cost per part at volume, but they are prone to
weld lines and flow marks that are visible in polished parts. The solution is proper gate
placement and runner balance, which is exactly what
mold flow analysis resolves before tooling.

For clear PET bottles, blow molding is the economic standard and is hard to beat.
Clear PVC and PET thermoforming suits blisters and transparent covers where volume is modest.

Our clear injection
molding guide goes deeper into achieving optical clarity in injection molded parts.

How to decide

1. Is the part hollow and thin-walled? Yes: blow molding. No: continue.
2. Is the part shallow and sheet-like? Yes: thermoforming. No: continue.
3. Does it need threads, snap fits, ribs, bosses or tight tolerances?
   Yes: injection molding.
4. Is volume above roughly 50,000 parts? Yes: injection molding, almost
   certainly with multi-cavity tooling and a hot runner.
5. Must it be optically clear? Then confirm the resin and process can
   actually achieve the clarity, with mold flow analysis, before committing to a process.

Send the 3D file and the annual volume. We will tell you which process suits it and quote
it. Request a quote and you will get a DFM-backed answer
within 24 hours.
